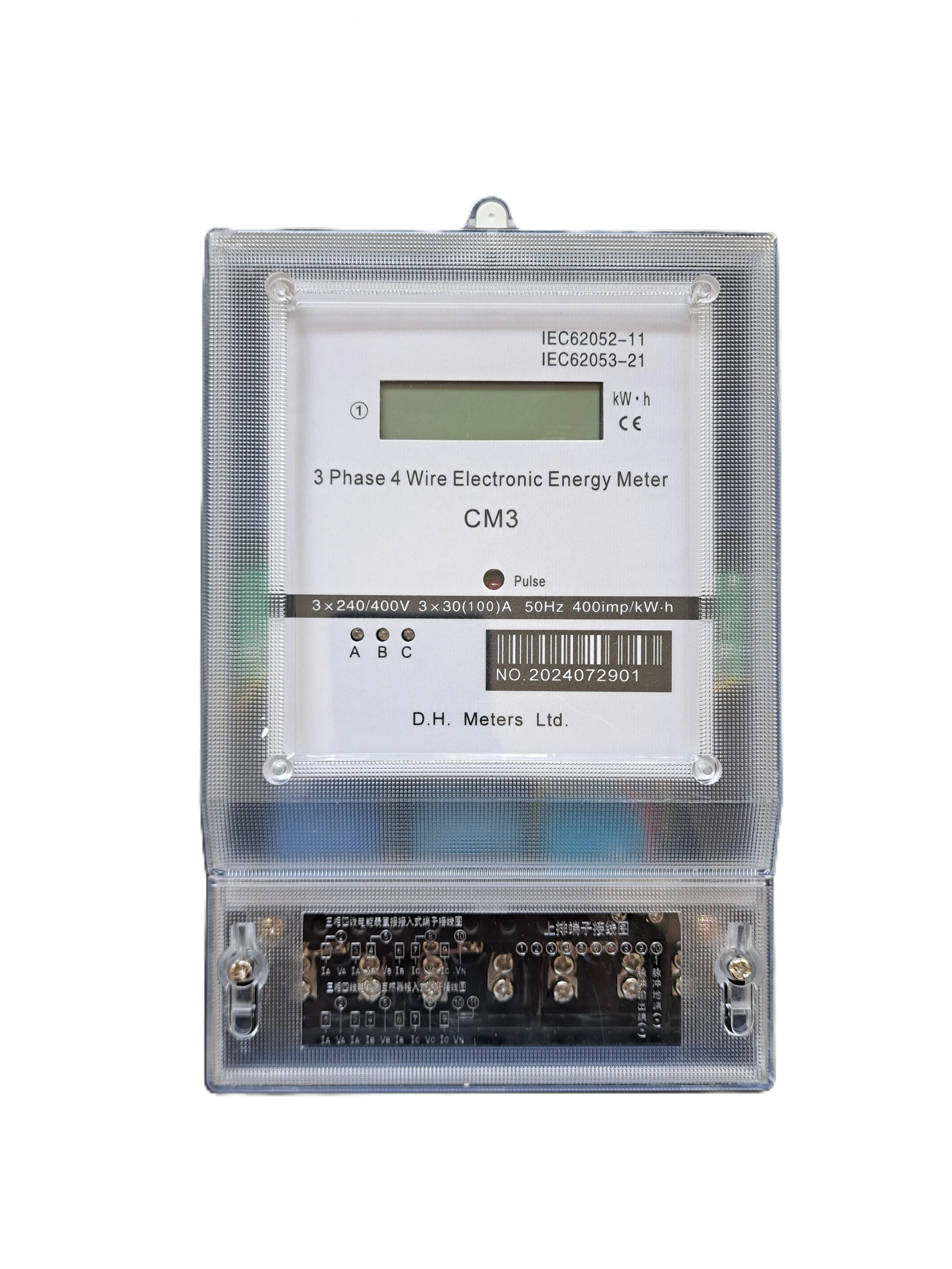

Three Phase 100A KWH Meter ( Monitoring Consumption )
This Three Phase Four Wire Energy Meter is a front board mounted electronic active energy meter used for measuring electric energy in three phase systems. This meter adopts many advanced technologies of research and development, a specialised chip for power measurement and SMT technique. This meter completely accords with the relevant technical requirements stipulated in the international standard IEC62053-21 for class 1 three phase active energy meters.
This Three Phase Four Wire Energy Meter is a front board mounted electronic active energy meter used for measuring electric energy in three phase systems. This meter adopts many advanced technologies of research and development, a specialised chip for power measurement and SMT technique. This meter completely accords with the relevant technical requirements stipulated in the international standard IEC62053-21 for class 1 three phase active energy meters.
This Three Phase Four Wire Energy Meter is a front board mounted electronic active energy meter used for measuring electric energy in three phase systems. This meter adopts many advanced technologies of research and development, a specialised chip for power measurement and SMT technique. This meter completely accords with the relevant technical requirements stipulated in the international standard IEC62053-21 for class 1 three phase active energy meters.
Accuracy Class 1
Voltage 240 V
Frequency 50 Hz
Current 100 A
Active 400 imp/kwh
Standard IEC62053-21
Display LCD
Dimensions : W=145mm x H=226mm x D=71mm
