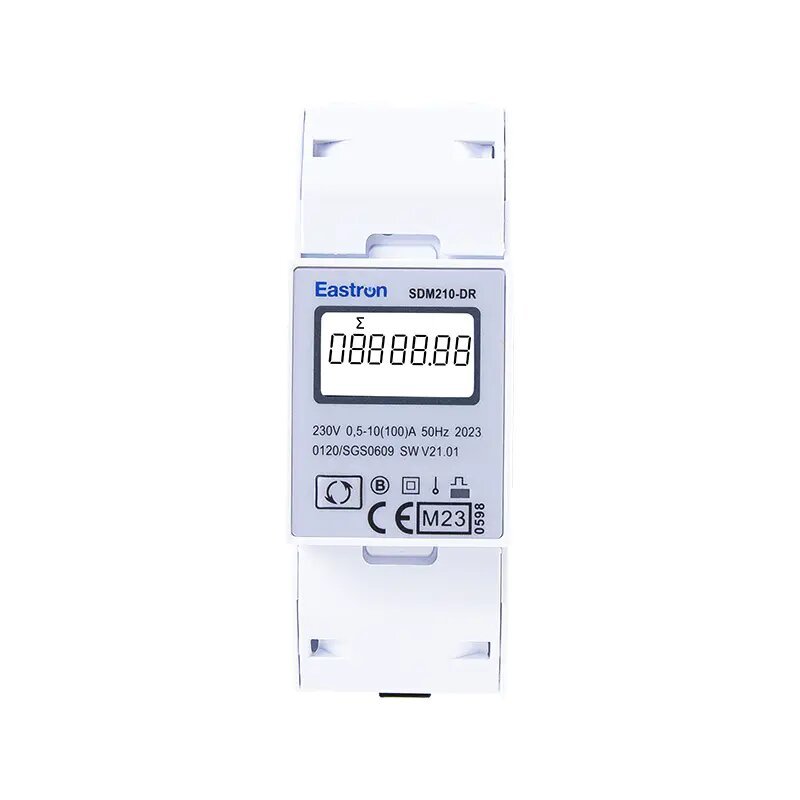

Eastron SDM210-DR ( Single Phase 100A Digital Display Din Rail Meter )
The Eastron SDM210DR is a basic digital single-phase kWh energy meter, which measures up to 100A direct load. The unit measures total Active Energy (kWh), Power (W), Current (I), Voltage (V), Import Energy (kWh), Export Energy (kWh) and Partial Resttable Energy (kWh). This meter is very popular due to its cost-effectiveness and simplicity of installation. This Series has been assessed and certified as meeting the requirements of EC Directive 2004/22/EC. The EC Type Examination Certificate Number is 0120/SGS0206.
The Eastron SDM210DR is a basic digital single-phase kWh energy meter, which measures up to 100A direct load. The unit measures total Active Energy (kWh), Power (W), Current (I), Voltage (V), Import Energy (kWh), Export Energy (kWh) and Partial Resttable Energy (kWh). This meter is very popular due to its cost-effectiveness and simplicity of installation. This Series has been assessed and certified as meeting the requirements of EC Directive 2004/22/EC. The EC Type Examination Certificate Number is 0120/SGS0206.
The Eastron SDM210DR is a basic digital single-phase kWh energy meter, which measures up to 100A direct load. The unit measures total Active Energy (kWh), Power (W), Current (I), Voltage (V), Import Energy (kWh), Export Energy (kWh) and Partial Resttable Energy (kWh). This meter is very popular due to its cost-effectiveness and simplicity of installation. This Series has been assessed and certified as meeting the requirements of EC Directive 2004/22/EC. The EC Type Examination Certificate Number is 0120/SGS0206.
MID B&D Approved - 0120/SGS0198
Single Phase (1P2W)
Displays Total Active Energy (kWh), Power (W), Current (I), Voltage (V), Import Energy (kWh), Export Energy (kWh) and Partial Resttable Energy (kWh).
100A AC
230V
Dual Pulse Outputs
2-DIN Module
Digital Backlit Display
MID: EN50470-1 & EN50470-3 Class B
EMC: EN61326-1 & EN61326-2-3
LVD: EN61010-1 & EN61010-2-3
Height 100mm
Depth 63mm
Width 36mm
