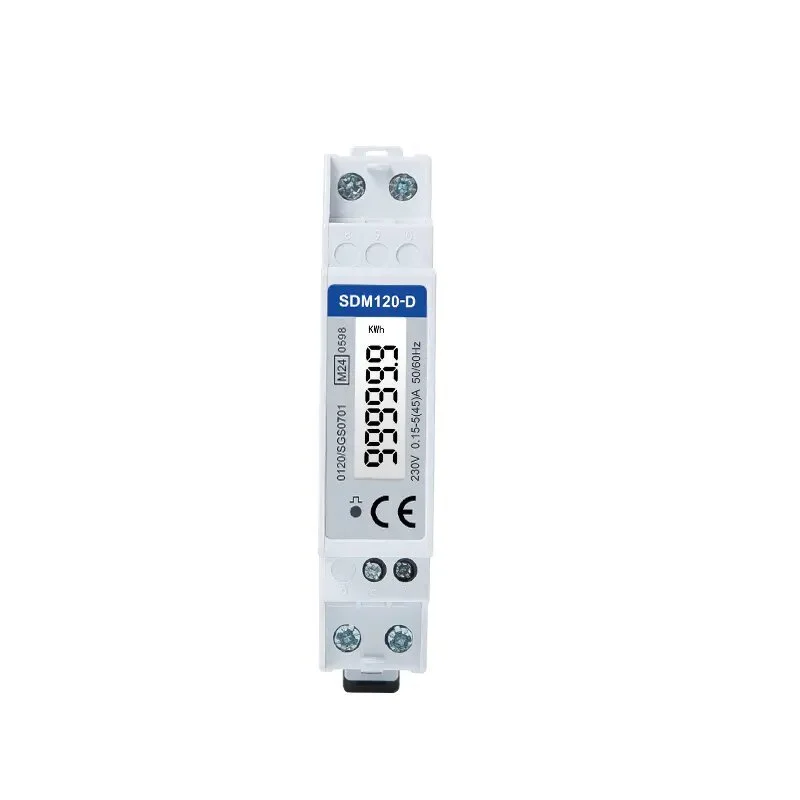

Eastron SDM120-D ( Single Phase 45A Digital Display Din Rail Meter )
The Eastron SDM120D - MID is a Direct Connected (with pulsed output), Single-Phase MID electric energy with 5+1 digital LCD display (no backlight) for measuring kWh. The SDM120D uses an advanced special recording integrated circuit with high precision. It is used in AC single-phase watt-hour with is recording frequency of 50Hz, It is highly accurate, durable, reliable, low power consumptive, without reversion, creep-proof, anti-tamper-proof and bilateral recording with strong overloading capability. it conforms to the related requirements of GB/T17215 321-2008 and passes EMC and LVD in world famous labs.
The Eastron SDM120D - MID is a Direct Connected (with pulsed output), Single-Phase MID electric energy with 5+1 digital LCD display (no backlight) for measuring kWh. The SDM120D uses an advanced special recording integrated circuit with high precision. It is used in AC single-phase watt-hour with is recording frequency of 50Hz, It is highly accurate, durable, reliable, low power consumptive, without reversion, creep-proof, anti-tamper-proof and bilateral recording with strong overloading capability. it conforms to the related requirements of GB/T17215 321-2008 and passes EMC and LVD in world famous labs.
The Eastron SDM120D - MID is a Direct Connected (with pulsed output), Single-Phase MID electric energy with 5+1 digital LCD display (no backlight) for measuring kWh. The SDM120D uses an advanced special recording integrated circuit with high precision. It is used in AC single-phase watt-hour with is recording frequency of 50Hz, It is highly accurate, durable, reliable, low power consumptive, without reversion, creep-proof, anti-tamper-proof and bilateral recording with strong overloading capability. it conforms to the related requirements of GB/T17215 321-2008 and passes EMC and LVD in world famous labs.
MID B&D Approved - 0120/SGS0221
Single Phase (1P2W)
45A AC (45A Direct Connected)
230V AC
1-DIN Module
Digital Display
Import Active Energy (kWh)
MID: EN50470-1 & EN50470-3 Class B
EMC: EN61326-1 & EN61326-2-3
LVD: EN61010-1 & EN61010-2-3
Height 119mm
Depth 62mm
Width 17.5mm
