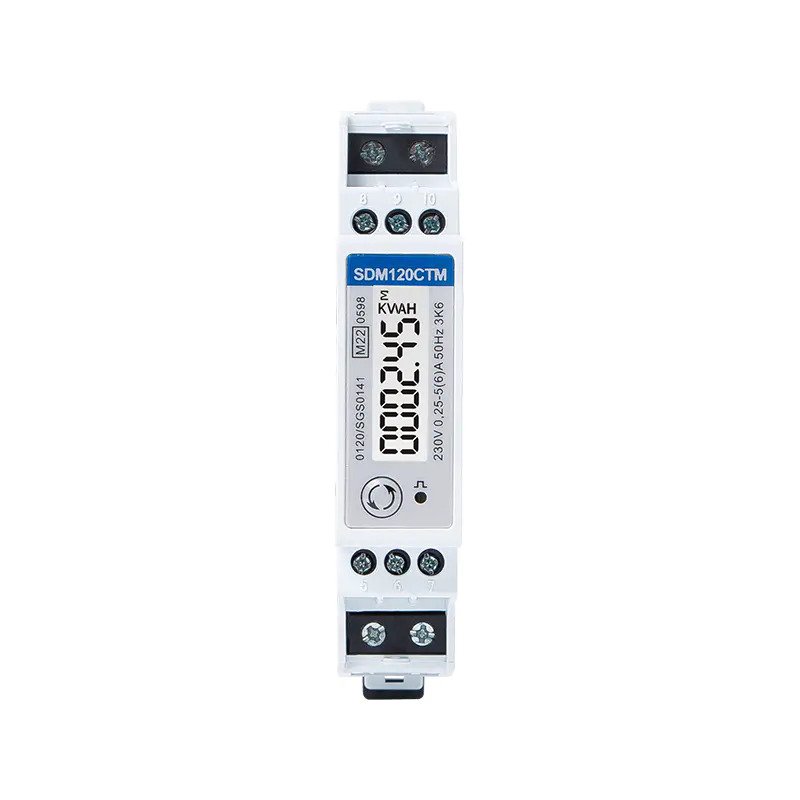

Eastron SDM120CTM ( Single Phase Current Transformer Operated Digital Display Multifunction/Modbus Din Rail Meter )
The Eastron SDM120CTM is a RS485 Modbus CT Type Din Rail Single Phase Multi-function Energy Meter. It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc. Suitable for monitoring energy consumption in residential, solar PV, industrial and utility applications.
The meter can be configured to work with a wide range of CTs, giving the unit a wide range of operation.
The Eastron SDM120CTM is a RS485 Modbus CT Type Din Rail Single Phase Multi-function Energy Meter. It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc. Suitable for monitoring energy consumption in residential, solar PV, industrial and utility applications.
The meter can be configured to work with a wide range of CTs, giving the unit a wide range of operation.
The Eastron SDM120CTM is a RS485 Modbus CT Type Din Rail Single Phase Multi-function Energy Meter. It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc. Suitable for monitoring energy consumption in residential, solar PV, industrial and utility applications.
The meter can be configured to work with a wide range of CTs, giving the unit a wide range of operation.
Bi-directional measurement for kW and kWh
Configurable pulsed output (Import, Export, Nett kWh)
Dual Pulsed Communications
Multi Parameter measurements
Simple set up and operation
Din Rail Mounted
MID: EN50470-1 & EN50470-3 Class B
EMC: EN61326-1 & EN61326-2-3
LVD: EN61010-1 & EN61010-2-3

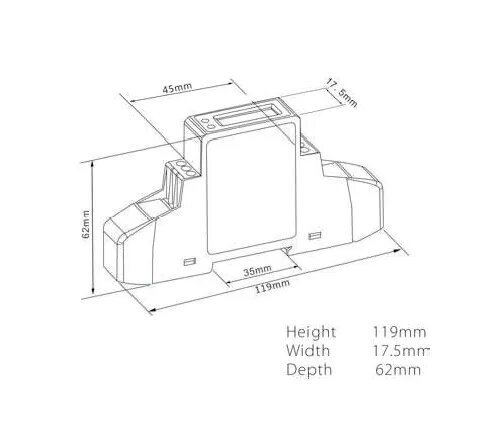

Height 119mm
Depth 62mm
Width 17.5mm
